Pump Suction Specific Speed

Pump Suction Specific Speed

Suction Specific Speed

It is a dimensionless range and index relating flow, internet Positive Suction Head needed (NPSHr), and speed for pumps. The suction specific speed of the pump should be calculated for the conditions adore the capability at the best potency purpose (BEP) of the pump at most vane diameter. (Refer below the figure for suction specific speed formula)

In the case of the double suction vane that truly has 2 inlets. thence the flow is split by 2. Refer below the figure for formula.

importance of Suction specific speed

The following square measure a number of the points to focus on the importance of suction specific speed

1. The pump suction specific speed can give an associate assessment of a pump’s condition to internal recirculation.
2. It acts as a tool for examination cavitation and predicting NPSHr of the pumps. For a given specific speed, the lower the worth of Nsss, the safer the pump against cavitations.
3. Suction specific speed is employed to limit the pump speed. An increase in pump speed while the not correct suction condition may result in abnormal wear and potential failure for excessive vibration, noise and cavitation injury.

Reason of Limit the Suction Specific Speed

As we tend to see from the higher than formula, the suction specific speed worth is inflated with reduced in NPSHr. The figure shows however the NPSHr curve varies with relevancy Pump Suction Specific Speed.

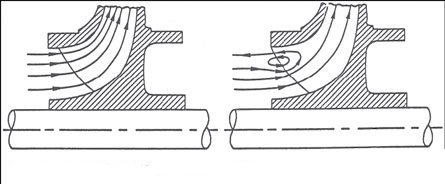

Pump Suction Specific SpeedNormally the NPSHr worth is reduced by increasing the attention diameter of the vane. Thereby the body of water rate of the pumping liquid decreases and therefore the NPSH needed is reduced at a similar pump speed. thanks to the inflated in eye diameter, the peripheral rate at the vane eye is inflated. {this can|this may|this can} cause some portion of the body of water liquid will flow back to the vane. this is often referred to as suction recirculation (refer below figure).

During suction recirculation, intense vortices arise and cause unaggressive areas which will cause cavitation and severe pressure pulsations. The impact of vane eye diameter on potential suction recirculation is evaluated mistreatment Suction Specific Speed (Nsss). Pump Suction Specific Speed.

Suction Specific Speed Limitation

To date, there’s no customary limit for suction specific speed out there in International standards. On the opposite hand, every finish-user(purchaser) having their own customers to limit the suction specific speed supported their expertise. In general, the utmost acceptable limit of suction specific speed is

Nsss (Metric unit) = ten thousand m3/hr,m,rpm

Nsss (US unit) = 8500 gpm,ft,rpm

Low energy pumps

The pump whose Nsss worth is a smaller amount of 8000(metric unit) is termed as low energy pump.

High energy pumps

The pump whose Nsss worth is larger than thirteen,000(metric unit) square measure referred to as a high energy pump. whereas choosing high energy pumps, each buyer associated pump manufacturer shall together adopt an NPSH take a look at the procedure for measure vibration and abnormal noise at the pump operative vary. so the vibration and abnormal noise made thanks to cavitation are going to be examined and corrective action to be taken.
