In this article we learn about Battery Ignition System: Working Principle and Operation Advantages, Disadvantages
Today in this article, I'll show you the Definition, Components, Working Principle and furthermore other significant subjects like Advantages, Disadvantages and Applications of Battery Ignition System. So let me initially start with the definition.
What is Battery Ignition System?
A battery Ignition System is utilized in an auto to create a sparkle in the flash fitting with the assistance of a Battery. It is for the most part utilized in the 4-wheeler vehicle however these days it is likewise utilized in bike vehicles where a 6-volt or 12-volt battery supplies the current to the start loop.
Portions of Battery Ignition System:
The primary segments of Battery Ignition framework are recorded beneath:
- Start switch
- Battery
- Start loop
- Counterbalance resistor
- Contact breaker
- Wholesaler
- Capacitor
- Flash Plug
Start Switch:
It is utilized for ON or OFF the motor. One finish of the switch is associated with the Primary Winding of Ignition Coil by means of Ballast Resistor, and another end is associated with the Battery.
Fundamentally when the key is put inside it and handed the switch over ON position then the circuit is finished (Close Circuit), and when moved towards the OFF position than it's anything but an open circuit.
These days, this switch is supplanted by the Push Button, and this framework is known as a keyless framework.
Also Read: Lubrication System: Types of Lubrication System and How it's Working?
Battery:
The battery is accommodated supply the underlying current to the start framework all the more explicitly start loop. By and large, the voltage of the battery is 6V or 12V or 24 V.
In an auto there are two sorts of Battery use broadly, one is lead-corrosive battery and another is the antacid battery. Despite the fact that there are Zinc Acid Battery and Lithium-Ion Battery is utilized in current vehicles.
Ignition curl:
It is the principle intersection or you can say the primary piece of Battery Ignition System. The fundamental reason for it is to venture up battery voltage with the goal that it is adequate for produces the sparkle.
It is filling in as a stage up transformer, and have two breezes, one is essential which have a lesser turn, and the other one is auxiliary which have a higher number of turn.
Stabilizer resistor:
This is utilized to restrict the current in the start circuit and by and large made of Iron. It is set in series between the Ignition Switch and Ignition Coil. Notwithstanding, it is utilized in old car vehicles.
Contact Breaker:
The contact breaker is an electrical switch which is managed by the cam and when the breaker is open, flow moves through the condenser and charges it.
Distributor:
It is utilized in the multi-chamber motor, and its motivation is to manage sparkle in each flash fitting at the right grouping.
Also Read: Electronic Ignition System: Working Principle, Application, Advantages and Disadvantages
There are two kinds of wholesalers.
- Carbon Brush Type
- Hole Type
Carbon Brush Type:
It is comprise of Carbon Brush which is slides over the metallic segment inserted in the wholesaler cap.
Hole Type:
In this kind, the rotor arm is gone through the metallic segment of the wholesaler cap yet it doesn't contact the outside of the merchant cap. that is the reason it is called Gap Type Distributor.
Capacitor:
A capacitor is a putting away gadget where electrical energy is put away. It is fitted corresponding to the contact breaker, when the current drops then it provided the extra current with the goal that the sparkle is created. It is made of two metal plates isolated via air or some other protecting material.
Spark Plug:
Sparkle Plug is another significant piece of Battery Ignition framework. Here the real Spark is produced for the ignition of Fuel or Charge. Assuming there is more, one flash fitting exists then every one is associated independently with the merchant and gives the sparkle in the arrangement.

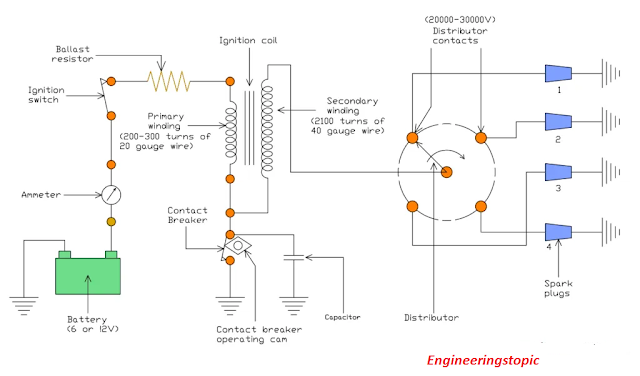

Working Principle of Battery Ignition System:
In Battery Ignition System, when the Ignition Switch is turned on then the current will streams to the essential circuit through counterbalance register, essential winding and contact breaker
The streaming current actuated an attractive field around the essential winding, the more current we supply the more attractive recorded will produce.
At a specific time, the contact breaker opens the current is coursing through the essential winding and fall. This unexpected fall of current produces high voltage around 300 V in the essential winding segment.
Because of this tremendous measure of voltage the capacitor comes into the charging state when the capacitor charged completely then it begins conveying the current towards the battery.
Because of this converse streaming of the current and as of now prompted attractive field in the essential winding, an extremely high voltage of 15000 V to 30000 V is produced in the auxiliary winding.
This high voltage current then, at that point moved to the wholesaler by means of high strain link, where effectively a rotor turns inside the merchant cap and has metallic sections implanted on it.
So when its beginning pivoting then at a specific stage it opens the contact breaker point which permits the high voltage current to moved to the sparkle plugs through the metallic sections.
So when the high voltage current arrives at the sparkle plug then it's anything but a focused energy of flash inside the motor chamber, which permits the ignition fuel to consume.
Also Read: Francis Turbine Working Principle and Operation, Advantage, Disadvantage
Advantages of Battery Ignition System:
- These are the accompanying benefits of Battery Ignition System:
- The power of sparkle is acceptable.
- It can likewise give a high centralization of sparkle even in low motor speed or turning over of Engine.
- The upkeep of this start framework is extremely less contrasted with others.
Disadvantages of Battery Ignition System:
The inconveniences are:
- Effectiveness diminished with a decrease in sparkle power.
- Consumes more space.
- Proficiency diminished with a decrease in flash force.
- Need occasional upkeep is required for Battery as it were.
Applications of Battery Ignition System:
Battery Ignition System is utilized in Automobile (Car, Bus, Truck even in the Bike) to deliver the Spark with the goal that Combustion fuel can be scorched.
So that is it for now, I trust you have discovered some new information from this stuff assuming you discovered it is useful, do impart this asset to your companion and your social channels.
I desire to see you in some other useful article. till then bye. Stay Healthy and Keep Learning with Us.
